SSAT Overview

SSAT will inspect the following for vehicle-mounted software as per your needs:

• Global variable initialization
• API usage errors
• Recursive Functions
• Race conditions

Global Variable Initialization Check

Checks that all global variables contained in the target module are properly initialized. Proper variable initialization means that it is initialized with a declaration. That is, it checks whether the variable is initially specified in the declared syntax. If you are going through an initialization process elsewhere other than the declaration location, the declaration location will display as unsatisfactory as not initialized.

The check looks for the global variable and reports its location, and if there is no syntax for initializing it, it treats it as an error. This is meant as a device to prevent variable initialization from falling out.

API Usage Error Check

hecks the source code contained in the target module for violations of API usage rules.

Currently, AUTRON_OSEK supports AUTRON_AUTOSAR platforms.

It currently supports checks for five types of API usage errors.

API Usage Error Type

• Type 1 [A-]: Error that the first function of the API was called in that task, but not the second function
• Type 2 [-B]: Error that the second function is called without the api's first function being called in that task
• Type 3 [AA]: Error that the first function of the API in that task is called in a row without a second function call
• Type 4 [BB]: Error in which only the second function is called in a row without the api's first function call in that task
• Type 5 [ABC]: Error that the second (third) function is called when the first (second) function of a particular API pattern is not called in that task.

Recursive Function Check

Checks for calls that are called directly or recursively as indirect calls through function pointers, including when a continuous call cycles through a function call.

The recursive function is detected by Strongly Connected Components (SCC). Functions contained in SCC can be reached by other functions in any function, so all included functions are recursive.

Race Condition Check

A race condition for a global variable is a state in which a task writes to a global variable and can have a different effect on the value of the global variable, depending on the time or order of the operation. In this case, there is a risk of different results than expected, depending on the timing or order.

In a multi-task environment, global variables (including static variables) can be accessed by multiple tasks at the same time. As a way to prevent this approach, the use of sequential APIs allows you to configure critical sections and write to global variables only inside that section.

Race condition checks take critical sections into account in a multi-task environment to determine whether race conditions can occur in global variables. In other words, if a large number of processes write to a global variable where critical sections are not configured, a race condition is determined to exist. This check checks for the existence of race conditions for all global variables (including static variables) and provides information about which processes have write access to which variables if they exist.

SSAT Execution

To create an analysis

1. Create an analysis accordint to Creating Analysis
2. In the Analysis Type window, select SSAT. The SSAT Analysis Settings window is displayed.
3. Set-up the analysis accoring to SSAT Settings, and click Apply button

To execute the analysis

• See Executing Analysis

To see the result

• See Viewing Analysis Result

Generating Analysis Report

• See Generating Analysis Report

SSAT Settings

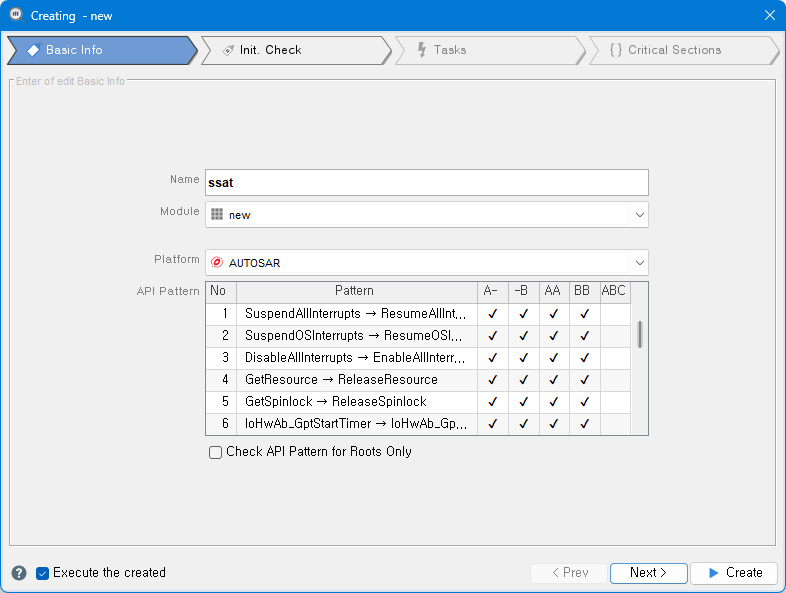

Analysis Basics

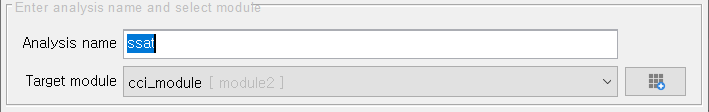

• Analysis Name: Enter a name for the analysis.
• Target Module: Select the module to be analyzed.
• Add Module button: You can add a new module to use.

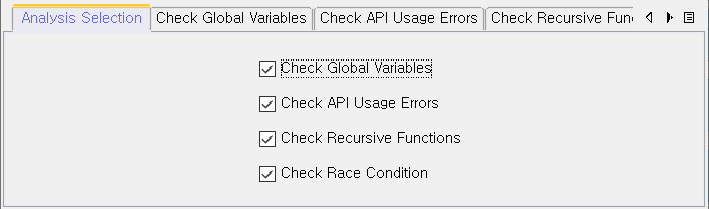

Select analysis

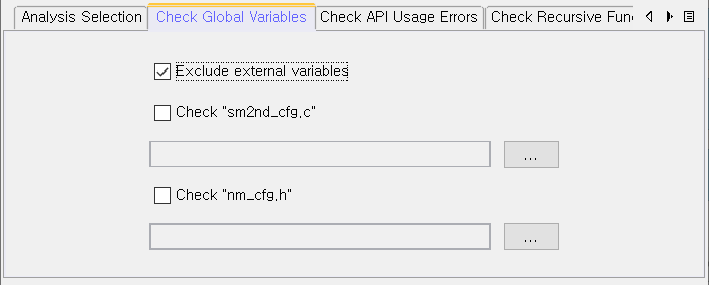

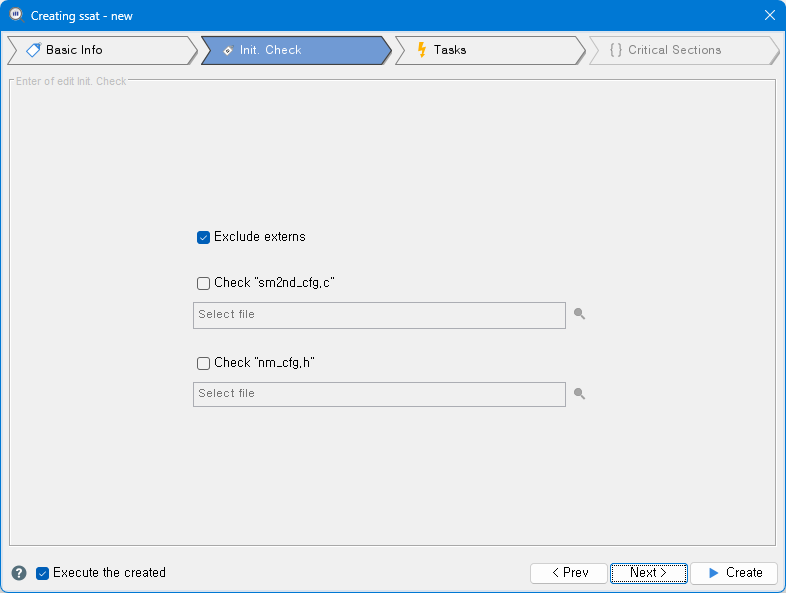

Global Variable Initialization Check

• Exclude EXTERN variables: Select whether to exclude external variables (EXTERN variables) that are difficult to determine whether to initialize with the information in that module alone.
• "sm2nd_cfg.c" scan: Include the "sm2nd_cfg.c" file in the scan. When you enter a file path, you find the file in the path you entered, or in the directory included in the module if you do not enter a file path, or if the file you entered does not exist. Perform a scan only if the file is found.
• "nm_cfg.h" scan: Include the "nm_cfg.h" file in the scan. When you enter a file path, you find the file in the path you entered, or in the directory included in the module if you do not enter a file path, or if the file you entered does not exist. Perform a scan only if the file is found.

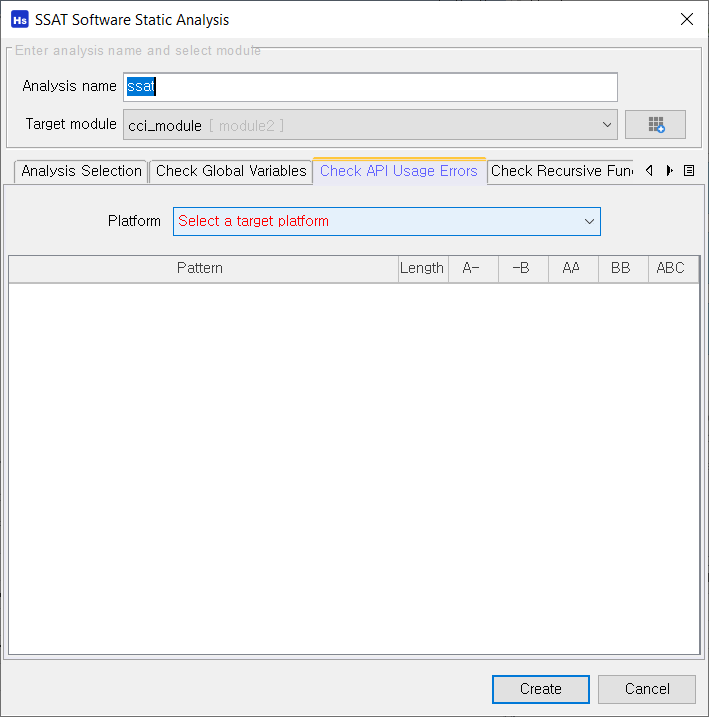

API Usage Error Check

• Platform: Supports AUTRON_OSEK, AUTRON_AUTOSAR platforms.

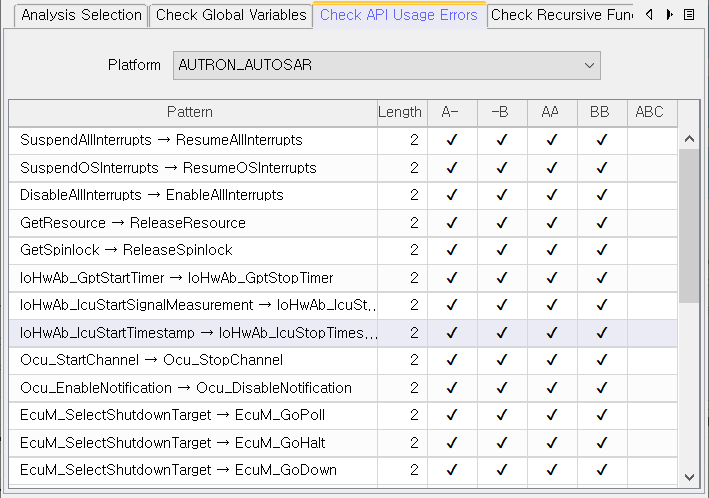

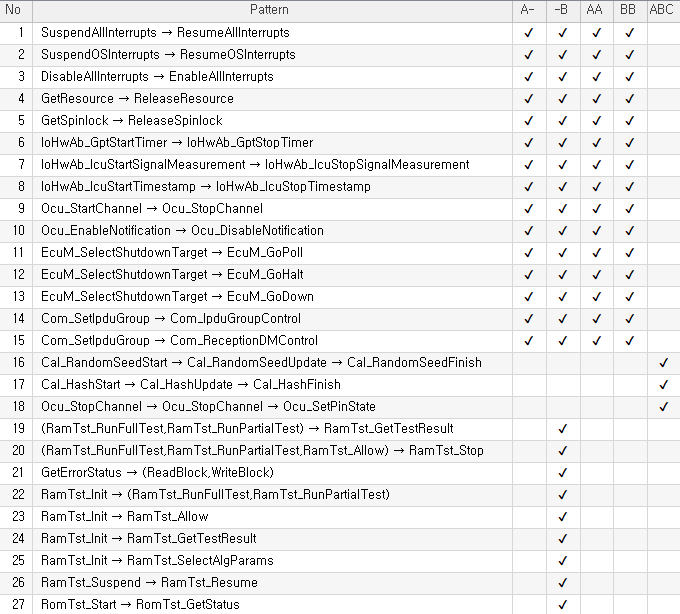

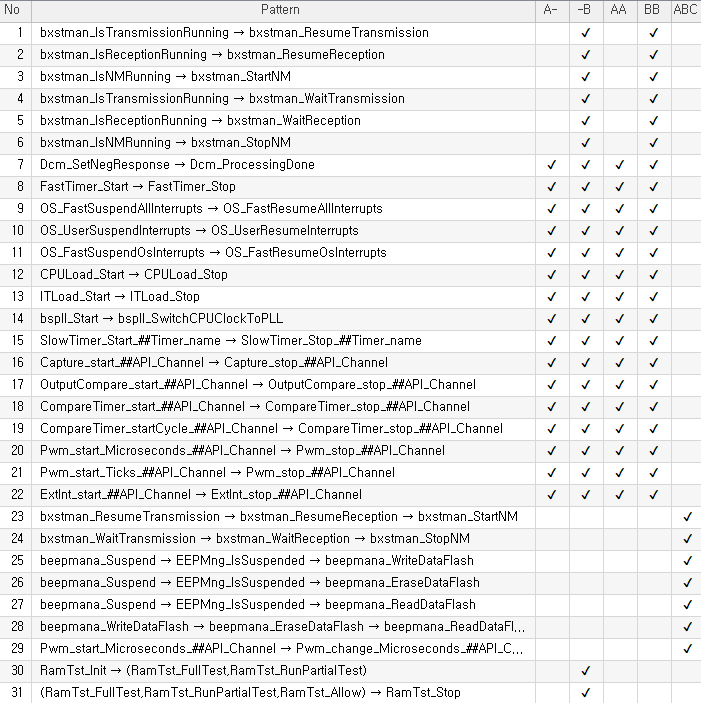

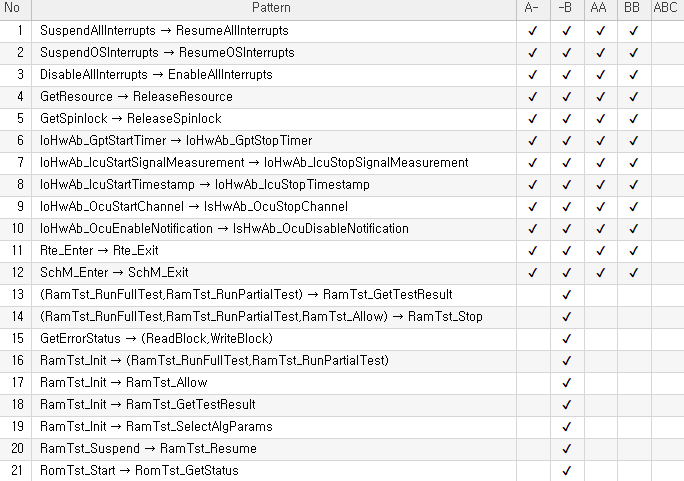

• Patterns to check: Shows the API patterns to be examined. The platform depends on the type of API pattern you are checking and the type of error. You can see this on the selected platform in the table below.

Recursive Function Check

• There are no recursive checkes available.

Race Condition Check

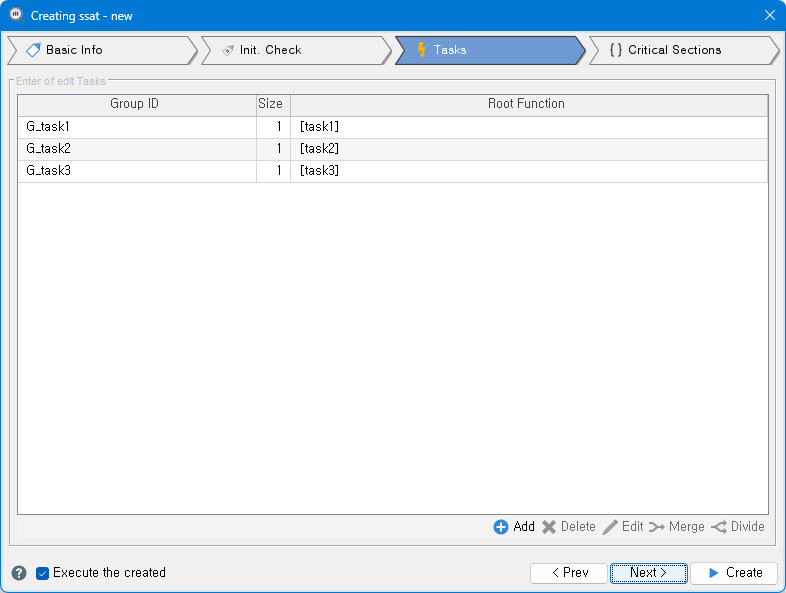

Task Group

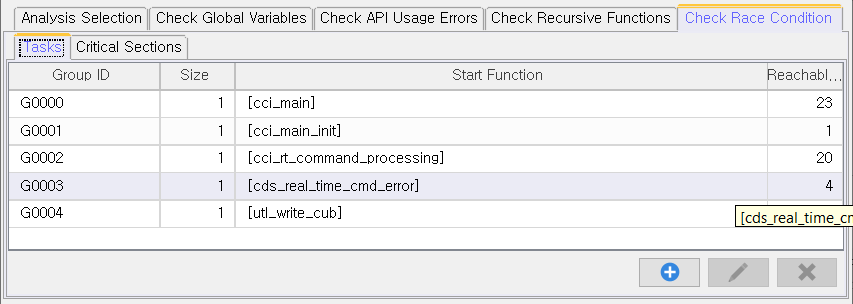

Task Gropu List

• Group ID: The task group ID. You can automatically grant or enter tasks when you add them, and the group ID must be unique.
• Size: The number of tasks selected.
• Start function: The function name.
• Reachable: The number of functions that can be reached by a function call from this function. include yourself.

Manage task group lists

• Add task groups: Add new task groups to the list.
• Change task group: Changes the information in the selected task group.
• Delete Task Group: Deletes the selected task group.

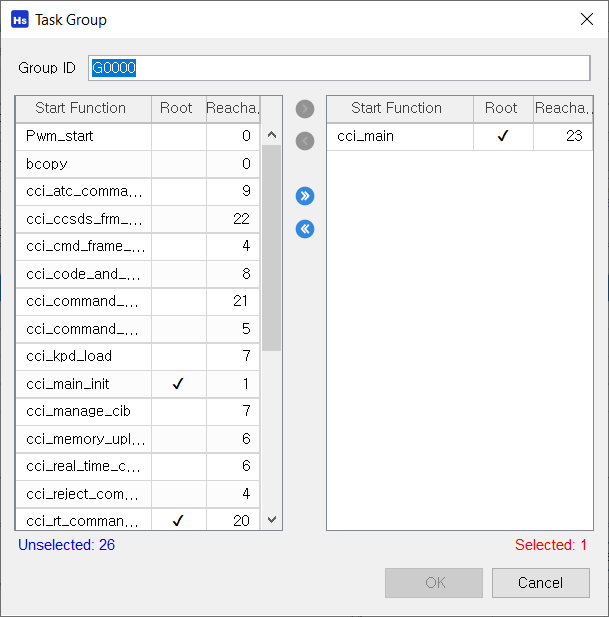

Edit Task Group screen

• Left list: Shows the tasks available for selection in the module.
• Right list: Shows the tasks selected in the module.

• Group ID: The task group ID. You can automatically grant or enter tasks when you add them, and the group ID must be unique.
• Start function: The function name.
• Root: Displays as root if it is not called from another function.
• Reachable: The number of functions that can be reached by a function call from this function. include yourself.

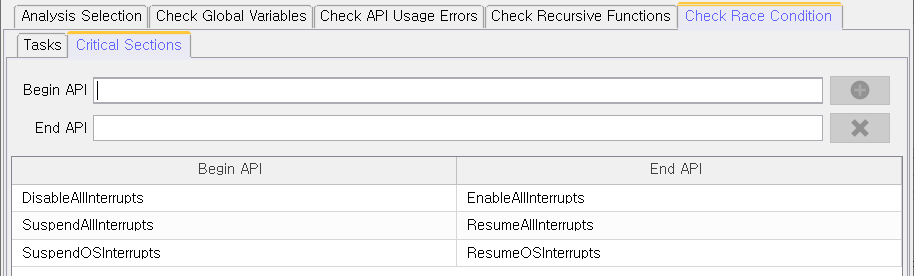

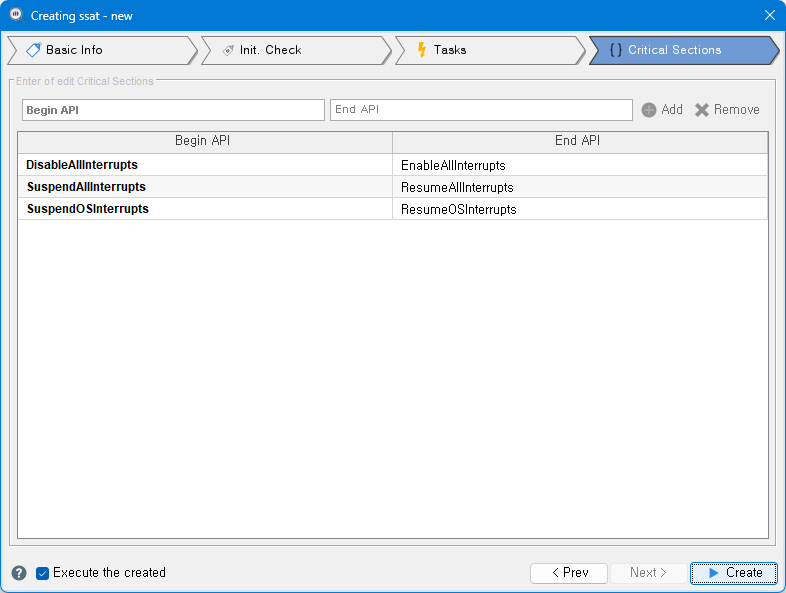

Critical section

• Begin API: The function from which the critical section begins.
• Eng API: A function that terminates the critical section.
• Add critical sections: Add entered start AND end API pairs as critical sections.
• Delete Critical Section: Deletes the selected critical section from the list.

SSAT Result View

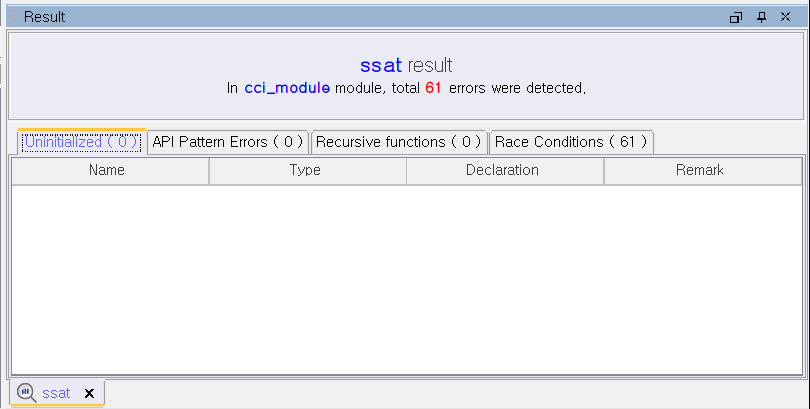

Global Variable Initialization Check Result

• Name: Global Variable Name
• Type: The type of global variable
• Declaration: Declaration location of global variable, but not '-' if source code is missing or location cannot be found
• Remark: The user gets a commented description in the code. However, if you want to be on the same line @HKSAT, you should start with a name-init and add a description.

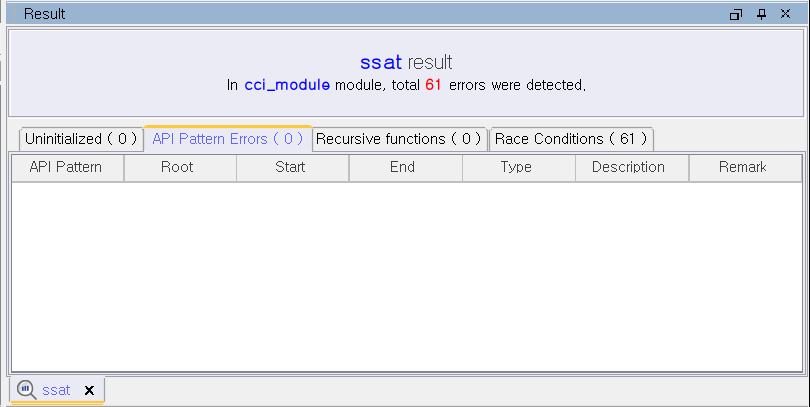

API usage error checking results

• API pattern: Shows the API pattern in which usage errors were found. The pattern is marked by ->
• Root: The name of the function from which the task begins. If the functions have the same name, it means that they were performed on the same task.
• Start and End locations: Different types of errors are displayed. (See description below)
• Type: Displays the type of API error.
• Description: Displays a description of the error type.
  • Type 1 [A-]: Where the start position was called by the first function, and where the end position ended the task.
  • Type 2 [-B]: Where the start position started the task started, and where the end position was called by the second function.
  • Type 3 [AA]: Where the first function was called, where the first function was called, and where the first function was called once more.
  • Type 4 [BB]: The start position becomes where the second function is called, and the exit position is where the second function is called once more.
  • Type 5 [ABC]: Where the start location started the task started, where the end position was called, and where the second or third function was called.
• Remark: The user gets a commented description in the code. However, if you want to use the same line @HKSAT, you should start with the same-MATT and add a description.

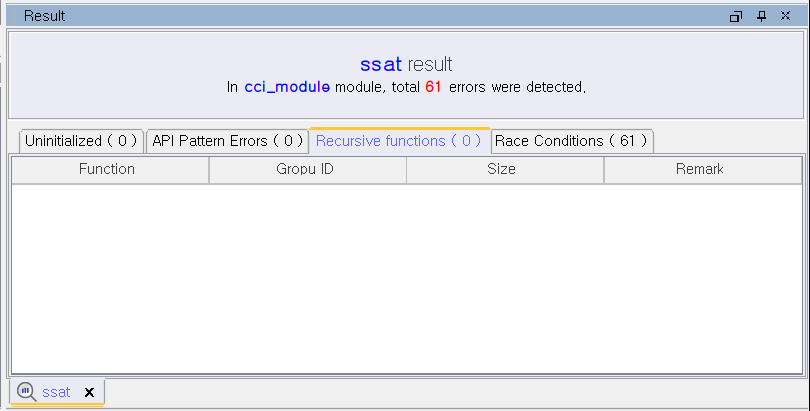

Recursive Function Check Result

• Function: Name of the recursive call function
• Group ID: The SCC ID that contains the function
• Size: The number of functions included in that SCC
• Remark: The user gets a commented description in the code. However, if you want to @HKSAT code, you should start with Recu and add a description.

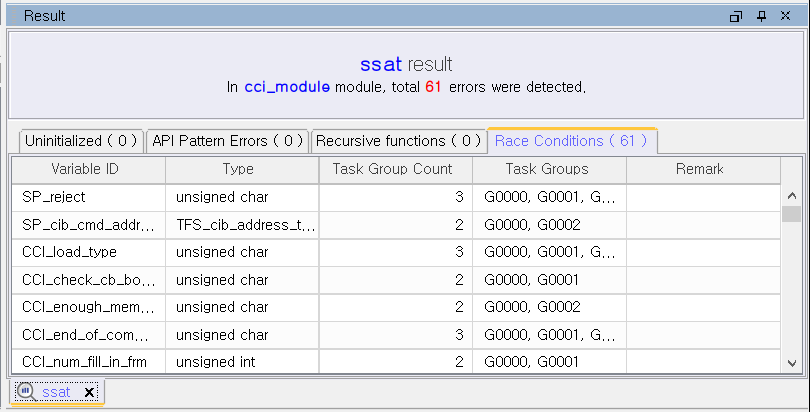

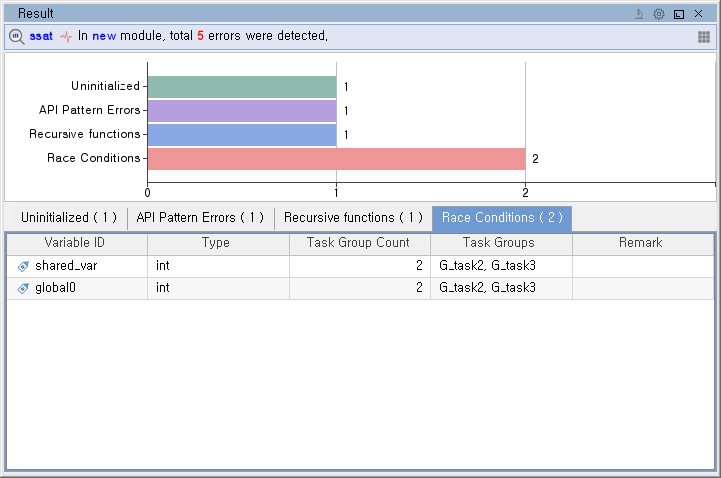

Race Condition Check Result

• Variable: Displays the name of the variable that causes the race condition.
• Type: Displays the data type of that variable.
• Task Group Count: Displays the number of task groups that write to and access that variable.
• Task groups: Lists the names of task groups that access the variable by commas.
• Remark: The user gets a commented description in the code. However, if you want to @HKSAT code, you should start with A-RACE and add a description.

SSAT Configuration

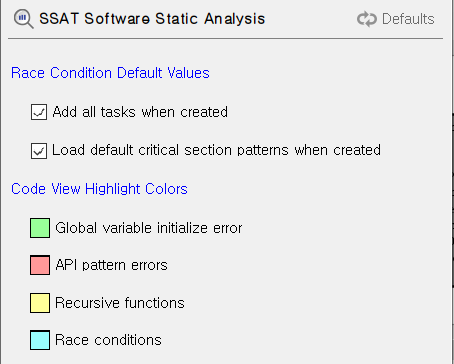

Race Condition Default Values

• Add all tasks when created: Add the root function, which is a function that is not called from any of the functions when the analysis is created, as a task in the race condition check.
• Load default critical section pattern: Pre-add known critical sections when you create an analysis.

Code View Highlight Colors

• Global variable init error is the color for uninitialized global variables in code blocks in the code view.
• API pattern errors is the color for API pattern errors in the code view.
• Recursive functions is the color for recursive functions in the code view.
• Race conditions is the color for race condition variables in the code view.
