Analysis Management

Creating an Analysis

To add a new analysis to an open project

On the Analysis menu, select Add Analysis.

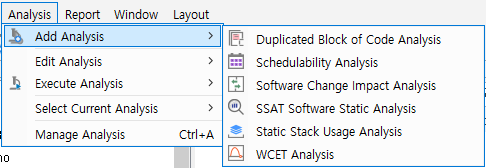

Analysis Type Selection Screen
Select the analysis type you want to add and click the OK button.
The Analysis Settings window corresponding to the selected analysis shape is displayed.
In the Analysis Settings window, set analysis options.
After all input is complete, click the Apply button to add an analysis.

Another way to start adding analytics>

Click the Manage Analytics button in the toolbar to open the Analysis Settings window, and then click the Add button.
In the Project node or Module node in the Project view, right-click to pop up the context menu, and then select Add Analysis.
On the Project node or Module node of the project graph, right-click to display the context menu, and then select Add Analysis.

The number of analyses is limited to a maximum of 32 characters, and only a combination of Letters and Numbers in English is available. Spaces, Unicode, and special characters are not available.

The Analysis Settings window has different options and interfaces depending on the type of analysis selected.
For settings based on the shape of the analysis, see the corresponding analysis description section.
The form of additional analysis that can be selected depends on the type of analysis plug-in installed, the type of compiler, and whether the module is created or not.
Most analyses may target modules, while some analyses do not require modules.
If you select a module from the required analysis and then display the Analysis Settings window, it is convenient because the module is automatically selected.

Start creating an analysiswith the help of Creating Analysis
Select the shape of the analysis.
In the User Confirmation window, select Yes.
The Create New Analysis window opens. Information imported from odin projects is automatically entered in the Create Analysis window.
Click the Apply button to add the analysis.

The odin project features support the following analysis:

Analysis	Supported
Software Static Analysis Tool(SSAT) : Race Condition Analysis	Tasks and critical sections
Worst-Case Execution Time Analysis(WCETA)	MCU system clock speed and root functions
Schedulability Analysis(SCHA)	Task priority and period
Static Stack Usage Analysis(SSUA)	Root functions

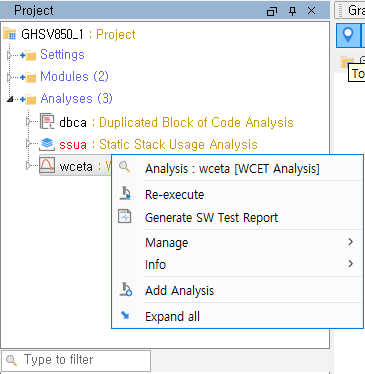

Select the analysis you want to run in the Analysis view, and then select Re-execute from the context menu.

Analysis selection
If the Run Analysis window is shown, check the execution options.

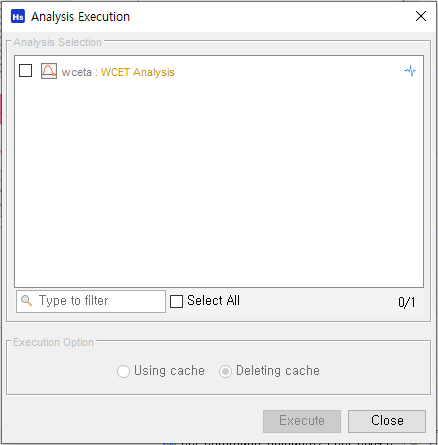

Analysis execution screen
Choose whether to use the cache.
Click the Execute button.
When the analysis is complete, the results of the analysis are displayed in the results view.

Analysis Results Screen

Other ways to run the analysis

In the Analysis node of the project view, right-click to display the context menu and select the Run Analysis item.
Select the Analysis node of the project graph, right-click to display the context menu, and then select the Run Analysis item.
Select the current analysis execution item from the Analysis menu. In this case, the analysis selected by the current analysis is executed.

You can select multiple analyses and run them all at once.
The analysis in which the results exist is linked to the analysis node by creating an analysis node in the project graph.
The Asses node displays a summary of the results of the analysis.
If the analysis does not exist or no analysis is selected in the Analysis Settings window, the Delete, Change, and Run buttons are disabled.

Select the Manage Analytics item from the Analysis menu or click the Manage Analysis button in the toolbar to activate the Analysis view.
After selecting the analysis you want to change, click the Change button to open the Edit Analysis window.
Change the contents of the Edit Analysis window as needed.
Click the Apply button to apply the changes.

Other ways to change the analysis

In the Analysis node of the project view, right-click to display the context menu, and then select the Analysis Changes item to open the Edit Analysis window.
In the Analysis node of the project graph, right-click to display the context menu, and then select the Analysis Changes item to open the Edit Analysis window.

If the analysis does not exist or no analysis is selected in the Analysis Settings window, the Delete, Change, and Run buttons are disabled.

Select the Manage Analytics item from the Analysis menu or click the Manage Analysis button in the toolbar to activate the Analysis view.
Select the analysis you want to delete, and then click the Delete button.
In the confirm deletion window, click the Yes button.

Other ways to delete analytics

In the Analysis node of the project view, right-click to pop up the context menu and select delete analysis.
In the Analysis node of the project graph, right-click to pop up the context menu and select delete analysis.
If the analysis does not exist or no analysis is selected in the Analysis Settings window, the Delete, Change, and Run buttons are disabled.

To display the Analysis Results window

Select the result view from the window menu or click the Results button in the toolbar to make the result window visible.
The results pane shows the results of the current analysis. If you see other analysis results in the Results pane, double-click the analysis in the project view or project graph to specify it as the current analysis.

You can select the desired analysis from the Current Analysis in the Analysis menu and specify it as the current analysis.
The most recently run analysis is the current analysis.
If no results are generated because the analysis is not performed, the results are not displayed.

To delete an analysis from a project

In the Analysis results node of the project view, right-click to display the context menu and select delete analysis results.
In the confirm deletion window, click the Yes button.

Other ways to delete the results of the analysis

In the Analysis results node of the project graph, right-click to pop up the context menu and select delete analysis results.
